MAQ AB

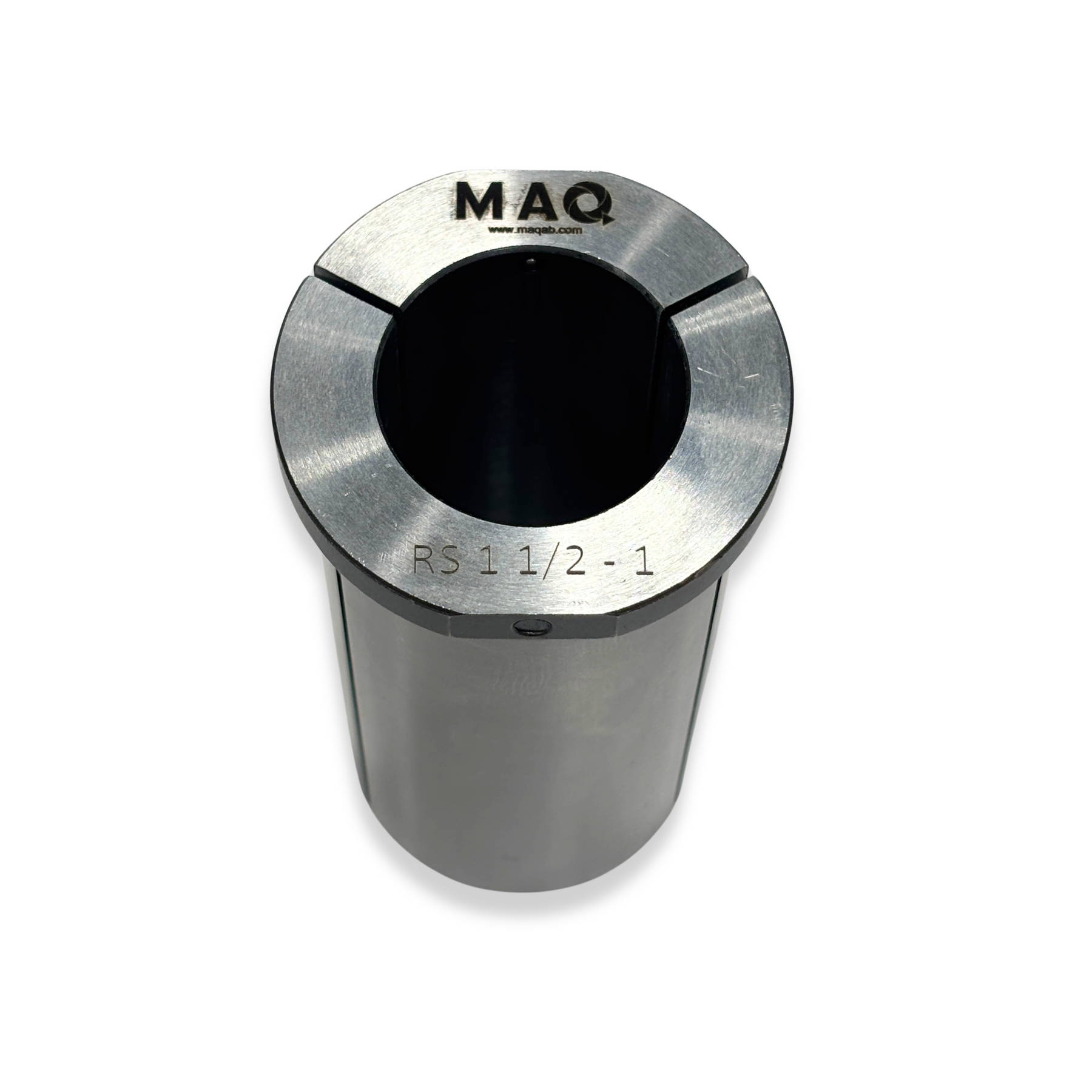

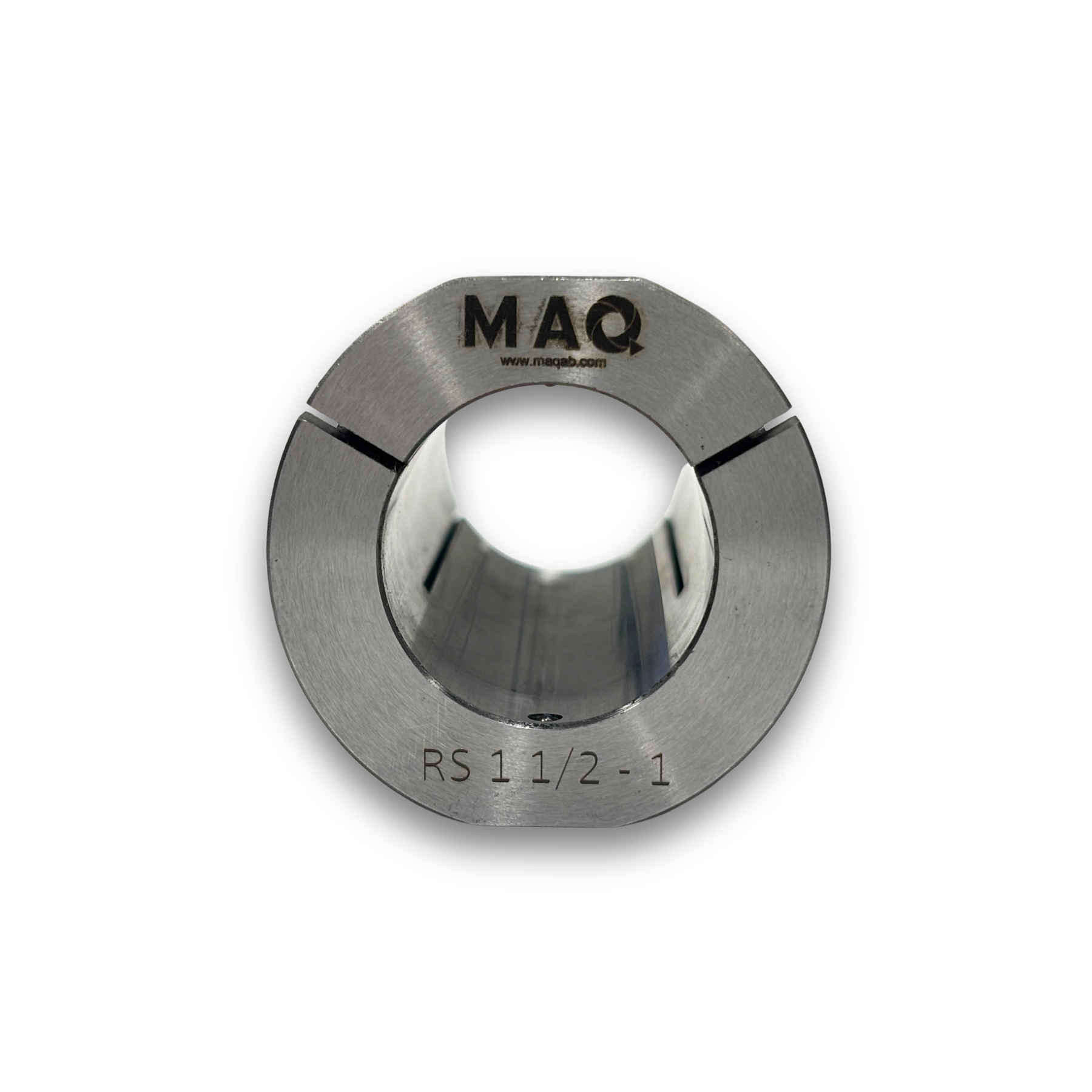

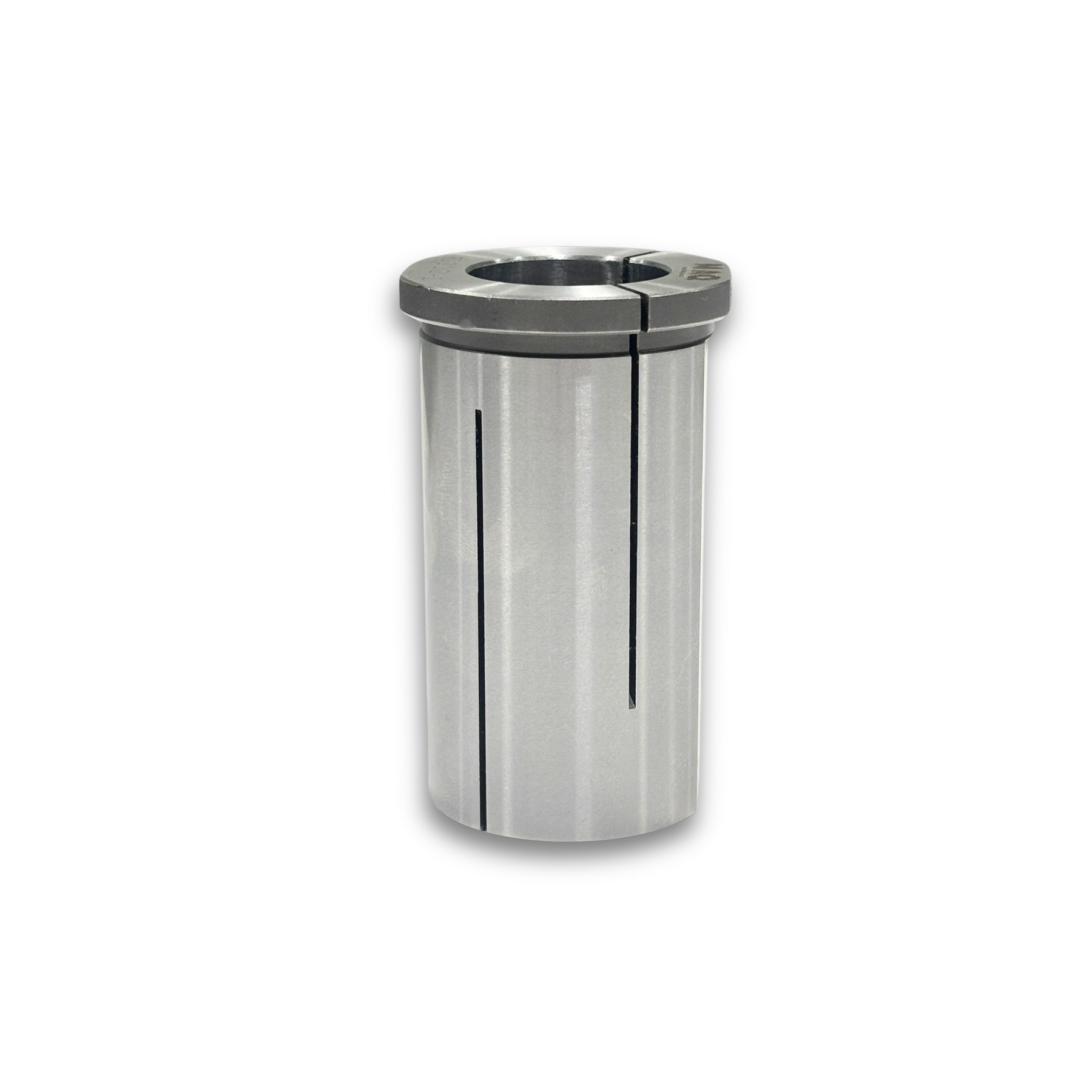

MAQ Reduction Sleeves
Inch - Available Sizes:1-1/4 OD ( 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1.00 ID )

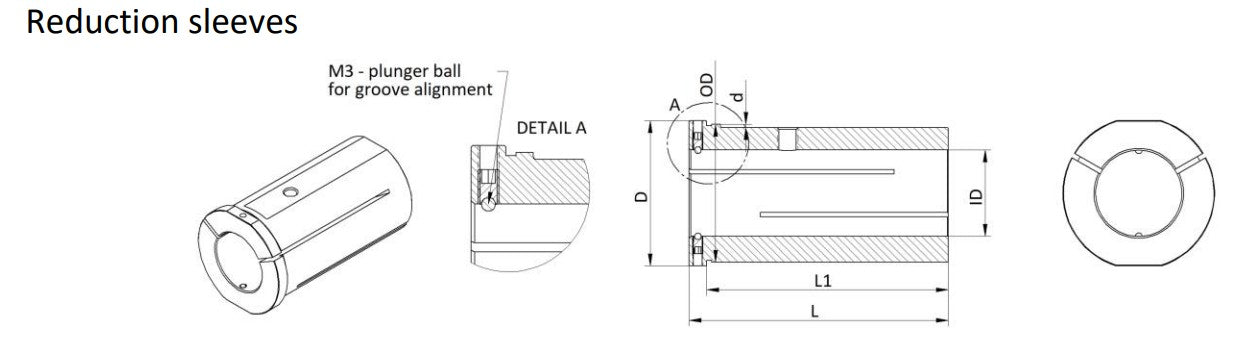

For Guaranteed results, choose an MAQ reduction sleeve with easy alignment detents. The detent centers on the reference line scribed on every MAQ bar which eliminates the guesswork when setting up.
Reduction Sleeves – Inch
| Part Number | Type | OD h6 (in) | ID H7 (in) | L (in) | D (in) | L1 (in) | d (in) |
|---|---|---|---|---|---|---|---|
| 300235 | 1¼ - 1 | 1.25 | 1.00 | 2.56 | 1.46 | 2.36 | 0.04 |
| 300236 | 1¼ - ¾ | 1.25 | 0.75 | 2.56 | 1.46 | 2.36 | 0.04 |
| 300237 | 1¼ - ⅝ | 1.25 | 0.625 | 2.56 | 1.46 | 2.36 | 0.04 |
| 300238 | 1¼ - ½ | 1.25 | 0.50 | 2.56 | 1.46 | 2.36 | 0.04 |
| 300239 | 1¼ - ⅜ | 1.25 | 0.375 | 2.56 | 1.46 | 2.36 | 0.04 |
| 300636 | 1¼ - ⁵⁄₁₆ | 1.25 | 0.3125 | 2.56 | 1.46 | 2.36 | 0.04 |
| 301218 | 1¼ - ¼ | 1.25 | 0.25 | 2.56 | 1.46 | 2.36 | 0.04 |
| 300229 | 1½ - 1¼ | 1.50 | 1.25 | 2.95 | 1.69 | 2.76 | 0.06 |
| 300230 | 1½ - 1 | 1.50 | 1.00 | 2.95 | 1.65 | 2.76 | 0.06 |
| 300231 | 1½ - ¾ | 1.50 | 0.75 | 2.95 | 1.65 | 2.76 | 0.06 |
| 300232 | 1½ - ⅝ | 1.50 | 0.625 | 2.95 | 1.65 | 2.76 | 0.06 |
| 300233 | 1½ - ½ | 1.50 | 0.50 | 2.95 | 1.65 | 2.76 | 0.06 |
| 300234 | 1½ - ⅜ | 1.50 | 0.375 | 2.95 | 1.65 | 2.76 | 0.06 |
| 300635 | 1½ - ⁵⁄₁₆ | 1.50 | 0.3125 | 2.95 | 1.65 | 2.76 | 0.06 |
| 301217 | 1½ - ¼ | 1.50 | 0.25 | 2.95 | 1.65 | 2.76 | 0.06 |
| 300639 | 2 - 1½ | 2.00 | 1.25 | 3.74 | 2.28 | 3.54 | 0.04 |
| 300640 | 2 - 1¼ | 2.00 | 1.50 | 3.74 | 2.28 | 3.54 | 0.04 |
| 300641 | 2 - 1 | 2.00 | 1.00 | 3.74 | 2.28 | 3.54 | 0.04 |
| 300642 | 2½ - 2 | 2.50 | 2.00 | 4.33 | 2.67 | 4.13 | 0.04 |
| 300643 | 2½ - 1½ | 2.50 | 1.50 | 4.33 | 2.67 | 4.13 | 0.04 |
| 300644 | 3 - 2½ | 3.00 | 2.50 | 5.04 | 3.46 | 4.84 | 0.04 |
| 300645 | 3 - 2 | 3.00 | 2.00 | 5.04 | 3.46 | 4.84 | 0.04 |
Reduction Sleeves Allow Easy Alignment And Provide Stable Machining Conditions
Cylindrical Clamping
It is recommended to clamp at least 3x diameter when boring. This dampens harmonics, increases holding force, and provides better concentricity.
