MAQ ANTI VIBRATION 3-6xD Fixed Head CCMT
MAQ ANTI VIBRATION 3-6xD Fixed Head CCMT
MAQ ANTI VIBRATION 3-6xD Fixed Head CCMT

MAQ AB

MAQ ANTI VIBRATION 3-6xD Fixed Head CCMT

$551.75 USD
SKU: 300217
STMD SCLCR C (CCMT Insert):1/2" (1.500–3.000 Workable Length)
CONTACT HERE To Place An Order

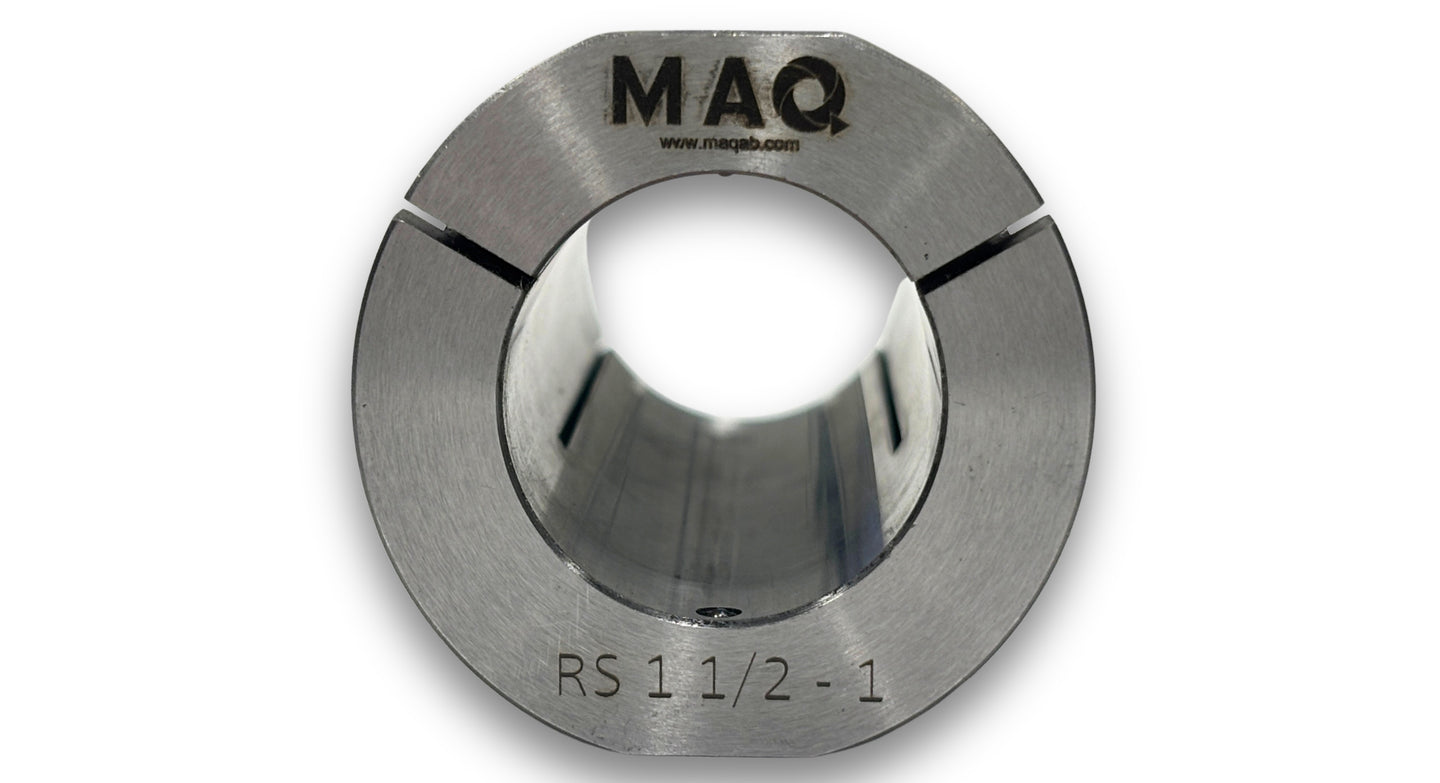

For Guaranteed results, choose an MAQ reduction sleeve with easy alignment detents. The detent centers on the reference line scribed on every MAQ bar which eliminates the guesswork when setting up.

SHOP REDUCTION SLEEVES

3-6xD Straight Holder with Fixed Head (Inch & Metric)

Self-Tuning Mass Damper

All MAQ vibration damped turning tools have the self-tuning mass damper technology inside and cover lengths from 3xD to 15xD. Starting from 5/16"diameter up to 2 1/2"

Bigger sizes are available upon request for a custom tool.

Part number Description Bar Diam
(in)		 Min Bore Diam
(in)		 Minimum and Maximum
Overhang (in)		 Overall Length
(in)		 Lmin If Shortened
(in)		 Lc
Clamping length 3xD Recom
(in)		 WF
Point To Center
(in)		 Lead Angle Rake Insert Screw Coolant Port Thread List price
300217 STMD 1/2 - 4.3 SCLCR C 1/2 0.63 1.500–3.000 4.3 2.8 1.4 0.33 -6 0 CCMT 060204 M2.5×6.0 G1/8 $551.75
300218 STMD 5/8 – 5.4 SCLCR C 5/8 0.78 1.875–3.750 5.4 3.8 1.9 0.43 -8 0 CCMT 060204 M2.5×6.0 G1/4 $535.19
300219 STMD 3/4 - 6.3 SCLCR C 3/4 0.98 2.250–4.500 6.3 4.7 2.4 0.51 -10 0 CCMT 09T304 M3.5×10.0 G1/4 $657.51
300220 STMD 1 - 8.1 SCLCR C 1 1.26 3.000–6.000 8.1 6.1 2.9 0.67 -10 0 CCMT 09T304 M3.5×10.0 G1/4 $727.59
300221 STMD 1-¼ - 10.1 SCLCR C 1-1/4 1.57 3.750–7.500 10.1 7.6 3.8 0.86 -8 0 CCMT 09T304 M3.5×10.0 G1/2 $918.73
300222 STMD 1-½ - 12.6 SCLCR C 1-1/2 1.96 4.500–9.000 12.6 9.4 4.7 1.06 -10 0 CCMT 09T304 M3.5×10.0 G1/4 $1,074.00

The self-tuning mass damper is how MAQ stands out

In internal turning processes, tool holders are often used with long overhangs. The cutting process will become unstable due to vibration, usually in the form of forced vibrations in machining and regenerative tool chatter. That is often solved by trying to stabilize the process with a lower cutting speed, reduced depth of cut, or increased feed per revolution.

The problem with these actions is that you either reduce production speed or that the surface finish is affected negatively. Usually, it means higher production costs as well. Vibration damping machine tools are necessary to expand the stable working zones of a metal cutting process.


MAQ tools are designed to adapt dynamically to these challenges. The patented STMD™️ (SelfTuning Mass Dampener) technology uses innovative polymer spring elements that adjust their
stiffness in real-time to match changing vibration frequencies. This unique self-tuning property
ensures consistent performance, even under fluctuating machining conditions.

Full Turning Catalog

Size

3.45 MB

Download

MAQ Boring 3-6xD Fixed Head CCMT

Size

723 KB

Download

Reduction Sleeves

Size

219 KB

Download
